Automated Hall Effect Measurement System
This automated Hall effect system measures carrier concentration, mobility, resistivity, and Hall coefficient with micro - probe precision and HDTV microscopy.
CONTACT US1. Product Overview
The Automated Hall Effect Measurement System provides a complete solution for evaluating the electrical properties of semiconductor materials. It integrates precision instruments and automated software to deliver highly accurate and repeatable results.
The system enables simultaneous acquisition of critical parameters such as bulk and surface carrier concentration, mobility, resistivity, Hall coefficient, and magnetoresistance. With full automation, it significantly reduces manual operation and improves testing efficiency.
2. Key Features
- Automated calculation of key semiconductor parameters
- High-precision electromagnet and power supply for stable magnetic fields
- Advanced constant current source and voltmeter for accurate Hall voltage measurement
- Flexible system design including probe station, matrix card, and standard samples
- Automated data acquisition and curve plotting
- Suitable for research laboratories and semiconductor material testing
3. System Configuration

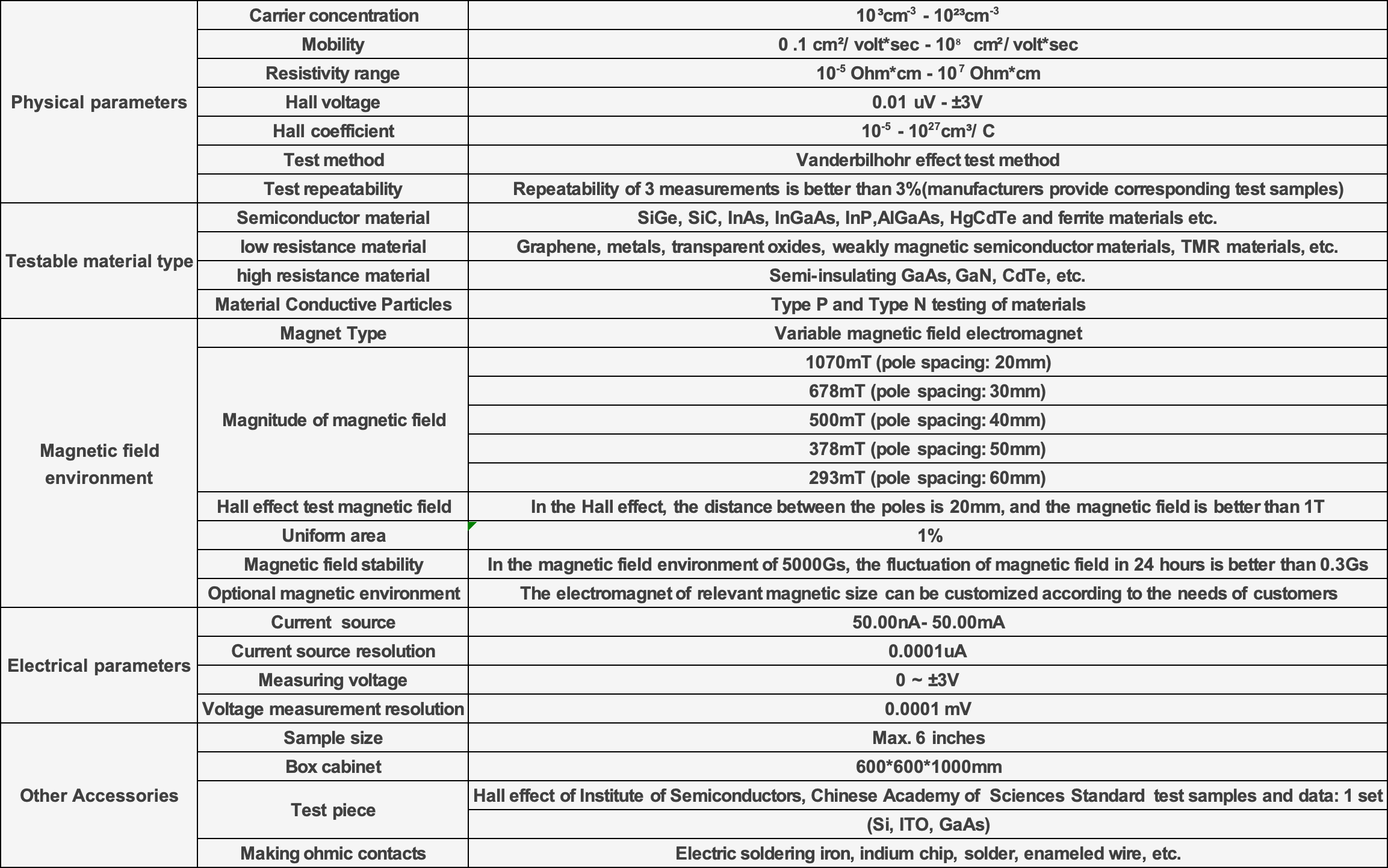

System parameter
CMT-300 Hall Effect Test System Configuration List
| No. | Name | Quantity |
| 1 | CMTSBV-100 electromagnet (vertical magnetic field) | 1 |
| 2 | CMT-320 | 1 |
| 3 | CMT-150 Gauss meter | 1 |
| 4 | Three-dimensional micro motion platform | 4 |
| 5 | Tungsten steel gold-plated pressure needle (three specifications) | 3 |
| 6 | CMT-F2030 high-precision linear power supply | 1 |
| 7 | TV microscope | 1 |
| 8 | HD camera | 1 |
| 9 | Probe bracket | 1 |
| 10 | Serial cable | 4 |
| 11 | Power cord | 4 |
| 12 | Accessory box (including ohm contact kit) | 1 |
| 13 | System software | 1 |
| 14 | System manual | 1 |
| 15 | Sample | 3 |
| 16 | Special thermometer for electromagnet | 1 |
| 17 | Standard cabinet (including socket strip) | 1 |
| 18 | Laptop computer | 1 |
Introduction to each component of the CMT-300 Hall Effect Test System
4. Software Functions
- Automated data acquisition and processing
- Calculation of Hall effect parameters including carrier concentration, resistivity, and mobility
- Real-time display of magnetoresistance and temperature-dependent properties
- Curve plotting and export for advanced analysis
5. Why Choose Cryomagtech
- Integrated Platform: Combines all key instruments required for Hall effect testing in one system
- High Accuracy: Delivers reliable measurements of resistivity, mobility, and carrier concentration
- Efficiency: Reduces manual operation with automated processes and intuitive software
- Flexibility: Configurable to meet the diverse needs of semiconductor research
- Trusted Support: Backed by Cryomagtech expertise and global service network
6. Contact & Inquiry
For product details, customization requests, or quotations, please contact:
